Technical Data

Overview

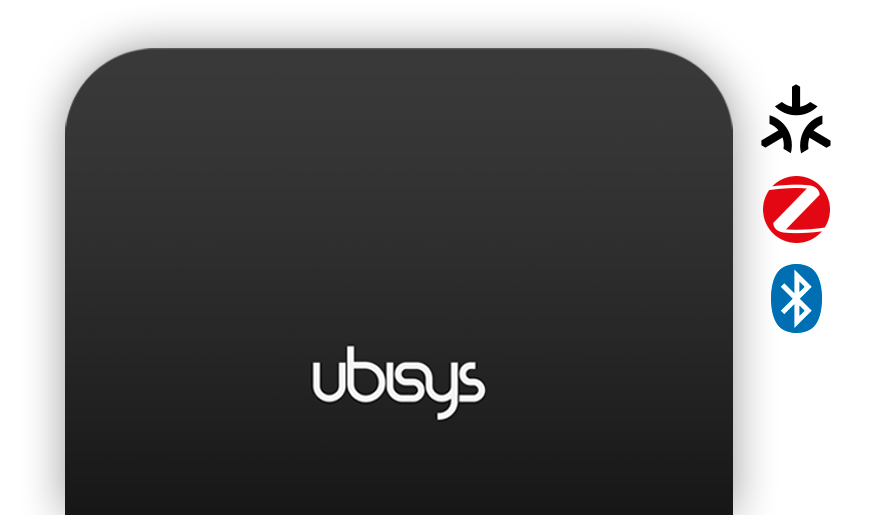

The gateway links your ubisys Smart Home to the outside world. It establishes a link via the internet connecting the ubisys Smart Home App on your mobile end device with the ubisys Smart Home components installed in your home. Connect the gateway with your DSL, UMTS or LTE router and you can manage and monitor your home while on the road.


Item No.

1014* (PoE**: yes, antenna: integrated)
1038  (PoE**: yes, antenna: external)
1007  (PoE**: no, antenna: integrated)
1021  (PoE**: no, antenna: external)

*ubisys commonly suggests this model.
**PoE: Power-over-Ethernet


Price

€ 349,- incl. VAT ( item no. 1014*)
€ 359,- incl. VAT (item no. 1038)
€ 329,- incl. VAT (item no. 1007)
€ 339,- incl. VAt (item no. 1021)

*ubisys commonly suggests this model.


Standards

IEEE 802.3af PD
IEEE 802.15.4
Zigbee 3.0


Features

Encryption
AES-128
ECDH
ECDSA

Via the web interface you can allow Apps on selected mobile end devices access to your smart home. Any lost device can easily be blocked and denied access with a mouse click.


System Details

32Bit ARM CPU, 400MHz
128MB, DDR2 SDRAM
256MB NAND-Flash


Power Supply

5V= or 48V= (PoE Variant)
Power consumption: 0.8W


Gateway Server Software

Smart Facility Server
Zigbee Over-the-Air Update Server
Zigbee Time Server
Zigbee/IP Gateway (GRIP)
Linux operating system


Connections

10/100 Base-T Ethernet, PoE PD
Power supply, 5V/1A (Only needed if PoE is not desired)
USB 2.0 High-Speed Host Port (for future development)
Version with RP-SMA for external Antenna available


Web Interface (for Commissioning)

Network configuration (DHCP, static etc.)
Firmware-Updates – also for installed devices
Unlocking and locking of mobile devices
Release support access
Etc.

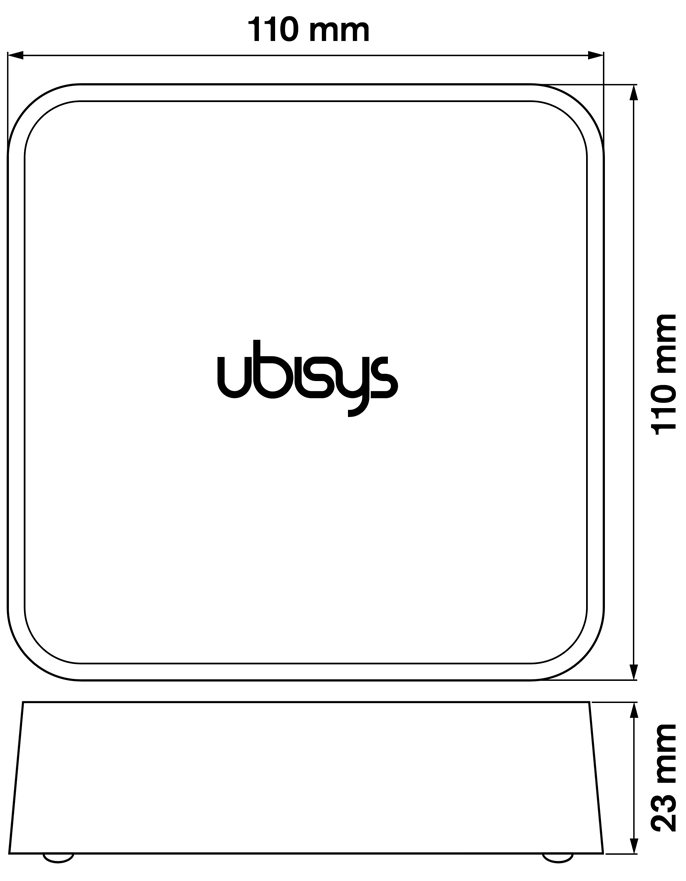

Dimensions


Certifications and Environmental Contribution



Compatible devices
different manufacturer

In general, all Zigbee 3.0 certified devices are supported. For older revisions of certified products
(e.g. HA 1.2) or non-certified devices we do not assume any warranty.
